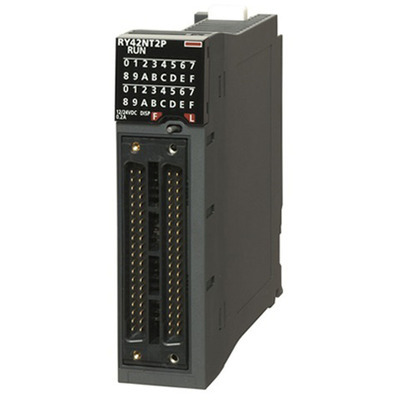

Mitsubishi RY42NT2P: iQ-R Series Transistor Output Module
IQ-R Series Transistor Output Module for advanced automation solutions.
| Attribute | Value |
|---|---|
| Series: | MELSEC IQ-R SERIES |
| Type: | TRANSISTOR OUTPUT (SINK) |
| Power Supply (V): | 12/24 |
| Current Type: | DC |
| Occupied I/O Points on PLC: | 64 |
| Integrated Digital Outputs: | 64 |
| Output Type: | TRANSISTOR |
| Output Logic: | SINK |
| Rated Load Voltage (VDC): | 12-24 |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,25 |
| Depth (mm): | 131 |
| Weight (kg): | 0,13 |
| Width (mm): | 27,8 |
| Height (mm): | 98 (106) |
| CE: | COMPLIANT |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 45 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 0 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 7439-92-1 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
