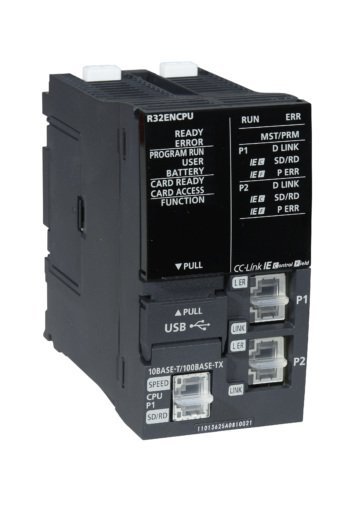

Mitsubishi R32ENCPU: iQ-R Series Programmable Controller CPU (CC-Link IE Embedded)
Mitsubishi’s iQ-R Series Programmable Controller CPU with CC-Link IE.
| Attribute | Value |
|---|---|
| Series: | MELSEC IQ-R SERIES |
| Type: | STANDARD CPU (WITH CC-LINK IE) |
| Program Memory: | 320K |
| Program Memory Unit: | STEPS |
| Local I/O Points: | 4.096 |
| Local + Remote I/O Points: | 4.096 |
| Cycle Time LD (ns): | 0,98 |
| Cycle Time MOV (ns): | 1,96 |
| USB: | 1 |
| Ethernet Port: | 1 |
| Buffer Battery: | YES |
| Int. Current Consumption (A): | 1,49 |
| Depth (mm): | 110 |
| Weight (kg): | 0,4 |
| Width (mm): | 56 |
| Height (mm): | 106 |
| CE: | COMPLIANT |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 55 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 5 |
| Wood (g): | 0 |
| Other paper (g): | 36 |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 7439-92-1, 1303-86-2, 2451-62-9, 12060-00-3, 110-71-4 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
