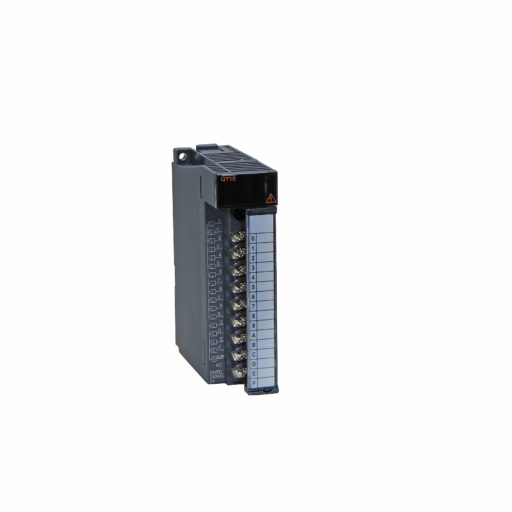

Mitsubishi QY10: Q-Series Relay Output Module
Mitsubishi QY10: Q-Series module for managing relay output operations.
| Attribute | Value |
|---|---|
| Series: | MELSEC-Q SERIES |
| Type: | RELAY OUTPUT |
| Occupied I/O Points on PLC: | 16 |
| Integrated Digital Outputs: | 16 |
| Output Type: | RELAY |
| Rated Load Voltage (VAC): | 240 |
| Rated Load Voltage (VDC): | 24 |
| Wiring: | SCREW |
| Int. Current Consumption (A): | 0,43 |
| Depth (mm): | 90 |
| Weight (kg): | 0,198 |
| Width (mm): | 27,4 |
| Height (mm): | 98 |
| CE: | COMPLIANT |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 40 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 0 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
