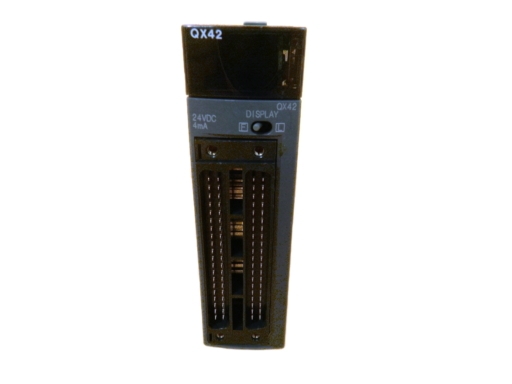

Mitsubishi QX42: Q-Series DC Input Module
Mitsubishi Q-series DC input module for efficient power conversion.
| Attribute | Value |
|---|---|
| Series: | MELSEC-Q SERIES |
| Type: | DC INPUT (PLUS COMMON) |
| Occupied I/O Points on PLC: | 64 |
| Integrated Digital Inputs: | 64 |
| Rated Input Voltage (VDC): | 24 |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,075 |
| Depth (mm): | 90 |
| Weight (kg): | 0,143 |
| Width (mm): | 27,4 |
| Height (mm): | 98 |
| CE: | COMPLIANT |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 40 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 0 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 7439-92-1 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
