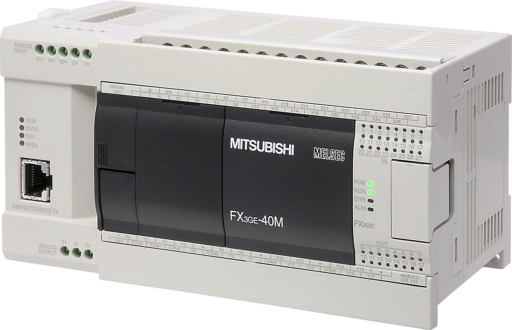

Mitsubishi FX3GE-40MR/ES: Base Unit
Mitsubishi FX3GE-40MR/ES: Basic unit for industrial automation and control system.
| Attribute | Value |
|---|---|
| Type: | FX3GE |
| Power Supply (V): | 100-240 |
| Current Type: | AC |
| Program Memory: | 32K STEPS |
| Program Memory Unit: | EEPROM |
| Integrated Digital Inputs: | 24 |
| Integrated Digital Outputs: | 16 |
| Integrated Analogue Inputs: | 2 |
| Output Type: | RELAY |
| Local I/O Points: | 128 |
| Local + Remote I/O Points: | 256 |
| Expandable: | YES |
| Cycle Time LD (ns): | 210 |
| Cycle Time MOV (ns): | 500 |
| USB: | 1 |
| Ethernet Port: | 1 |
| RS-422: | 1 |
| Power Consumption (W): | 37 |
| Buffer Battery: | OPTION |
| Protection Class: | IP10 |
| Min. Ambient Temperature (°C): | 0 |
| Max. Ambient Temperature (°C): | 55 |
| Series: | MELSEC-F SERIES |
| Depth (mm): | 86 |
| Weight (kg): | 0,8 |
| Width (mm): | 175 |
| Height (mm): | 90 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 116 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 0 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
