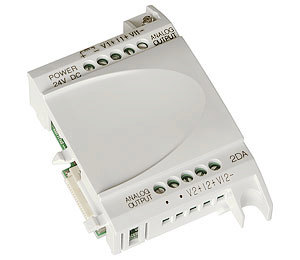

Mitsubishi AL2-2DA: Alpha Series PLC Expansion Module
Alpha Series PLC Expansion Module for Mitsubishi AL2-2DA systems.
| Attribute | Value |
|---|---|
| Series: | ALPHA2 SERIES |
| Type: | EXTENSION UNIT |
| Integrated Analogue Outputs: | 2 |
| Output Voltage Range (V): | 0-10 |
| Output Current Range (mA): | 4-20 |
| Min. Ambient Temperature (°C): | -25 |
| Max. Ambient Temperature (°C): | 55 |
| Depth (mm): | 24,5 |
| Weight (kg): | 0,05 |
| Width (mm): | 53,1 |
| Height (mm): | 90 |
| CE: | COMPLIANT |
| Shipping Approvals: | NON-COMPLIANT |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 0 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 26 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
