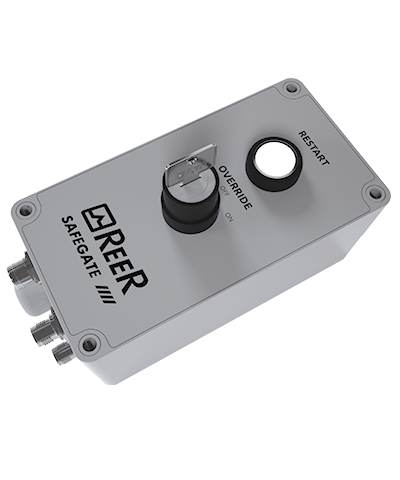

ReeR 1390955: SAFEGATE M SG BOX PLUS
Connection Box for Safegate with Restart and Override. 4 NA + 1 NC contacts
| Attribute | Value |
|---|---|
| Signalling | LEDs for outputs and Muting/Override status |
| Packaging Dimensions Hxlxw (mm) | 320 x 235 x 160 |
| Product Class | A |
| Custom Tariff | 85437090 |
| Connections | M12 5-pole connector (emitter), M12 12-pole connector (receiver or active TRX element) |
| Override Selectors | Yes |
| Built-in Muting Lamp | No |
| Safety Devices to Be Connected | All Safegate models, excluding S models |
| Restart Button | Yes |
| Safety Relay Outputs | 4 NO + 1 NC (2A at 250 VAC) |
