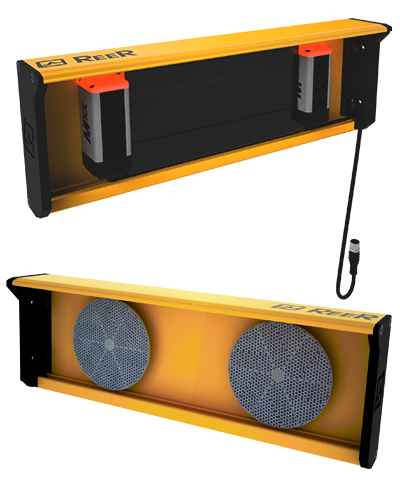

ReeR 1390826: SAFEGATE MZ L2XP TRX H
Set of Muting Brackets with 2 MTRX H (Transceiver) Sensors. L-Logic (Exit Only). Crossed or Parallel Beams. Extended Range
| Attribute | Value |
|---|---|
| Max. Range (m) | 5 |
| Functioning System | TRX (Transceiver) |
| Operating Temperature (°C) | – 30 … 55 |
| Detection | Access control |
| Packaging Dimensions Hxlxw (mm) | 145 x 450 x 200 |
| Product Class | B |
| Custom Tariff | 85389099 |
| Muting Sensors | Brackets for 2 single-beam Muting sensors MTRX with 2 CD8 retro-reflectors |
| Muting Logic | L (One way) logic with 2 sensors – Crossed or parallel beams |
| Muting Sensor Field | Adjustable height and horizontal and vertical tilting |
| Characteristic Output of Muting Sensors | PNP 100 mA at 24 VDC |
| Integrated Optoelectronic Sensors | 2 single-beam MTRX with crossed or parallel beams. High range |
