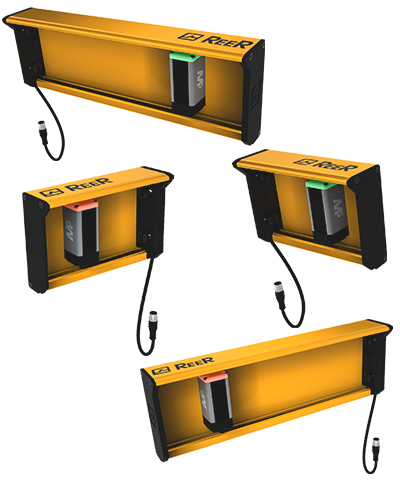

ReeR 1390824: SAFEGATE MZ T2X H
Set of Muting Brackets with 2 M5H Sensors. T-Logic (Entry-Exit). Crossed Beams. Extended Range
| Attribute | Value |
|---|---|
| Max. Range (m) | 5 |
| Functioning System | Emitter / Receiver |
| Operating Temperature (°C) | – 30 … 55 |
| Detection | Access control |
| Packaging Dimensions Hxlxw (mm) | 145 x 790 x 200 |
| Product Class | B |
| Custom Tariff | 85389099 |
| Muting Sensors | Brackets for 2 multibeams Muting sensors M5H |
| Muting Logic | T (Two way) logic with 2 sensors – Crossed beams |
| Muting Sensor Field | Adjustable height and horizontal and vertical tilting |
| Characteristic Output of Muting Sensors | PNP 100 mA at 24 VDC |
| Integrated Optoelectronic Sensors | 2 multibeams M5H with crossed beams |
