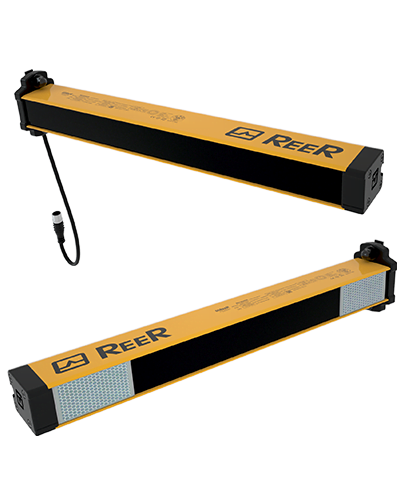

ReeR 1390821: SAFEGATE MA L2P TRX VG
Set of Muting Arms. L-Logic (Exit Only). 2 Parallel Beams. For Applications with High Speed Conveyors and Transparent Materials
| Attribute | Value |
|---|---|
| Max. Range (m) | 2 |
| Functioning System | TRX (Transceiver) |
| Operating Temperature (°C) | – 30 … 55 |
| Detection | Access control |
| Packaging Dimensions Hxlxw (mm) | 145 x 500 x 200 |
| Product Class | B |
| Custom Tariff | 85389099 |
| Muting Sensors | TRX Muting sensors arms with active and passive retro-reflector element. Reduced range for application with glass and transparent material. Longer Muting arms for high speed conveyors |
| Muting Logic | L (One way) logic with 2 parallel beams |
| Muting Sensor Field | Adjustable height and tilting |
| Characteristic Output of Muting Sensors | PNP 100 mA at 24 VDC |
| Integrated Optoelectronic Sensors | 2 with parallel beams |
