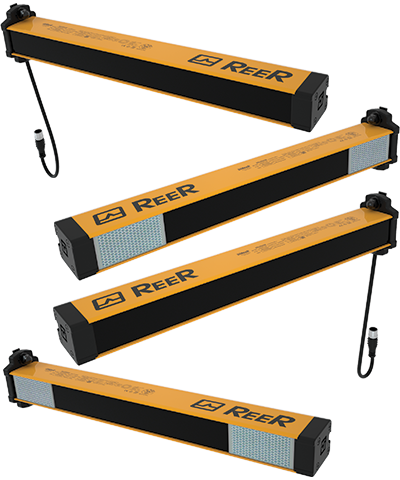

ReeR 1390814: SAFEGATE MA T4P TRX G
Set of Muting Arms. T-Logic (Entry-Exit). 4 Parallel Beams. For Applications with Transparent Materials
| Attribute | Value |
|---|---|
| Max. Range (m) | 2 |
| Functioning System | TRX (Transceiver) |
| Operating Temperature (°C) | – 30 … 55 |
| Detection | Access control |
| Packaging Dimensions Hxlxw (mm) | 145 x 870 x 200 |
| Product Class | C |
| Custom Tariff | 85389099 |
| Muting Sensors | TRX Muting sensors arms with active and passive retro-reflector element. Reduced range for application with glass and trasparent material in general |
| Muting Logic | T (Two way) Logic with 4 parallel beams |
| Muting Sensor Field | Adjustable height and tilting |
| Characteristic Output of Muting Sensors | PNP 100 mA at 24 VDC |
| Integrated Optoelectronic Sensors | 4 with parallel beams |
