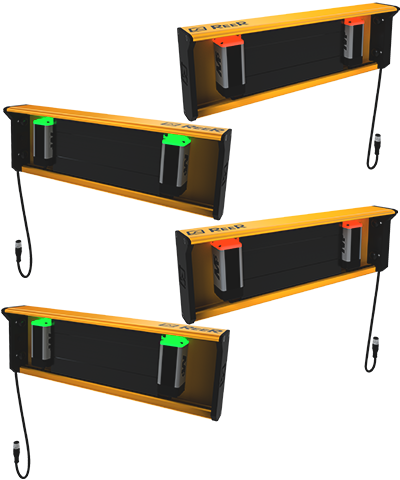

ReeR 1390812: SAFEGATE MZ T4P V
Set of Muting Brackets with 4 M5 Sensors. T-Logic (Entry-Exit). Parallel Beams. For Applications with High Speed Conveyors
| Attribute | Value |
|---|---|
| Max. Range (m) | 3.5 |
| Functioning System | Emitter / Receiver |
| Operating Temperature (°C) | – 30 … 55 |
| Detection | Access control |
| Packaging Dimensions Hxlxw (mm) | 145 x 1030 x 200 |
| Product Class | C |
| Custom Tariff | 85389099 |
| Muting Sensors | Brackets for 4 multibeams Muting sensors M5. Models with longer Muting brackets for high speed conveyors |
| Muting Logic | T (Two way) logic with 4 sensors – Parallel beams |
| Muting Sensor Field | Adjustable height and horizontal and vertical tilting |
| Characteristic Output of Muting Sensors | PNP 100 mA at 24 VDC |
| Integrated Optoelectronic Sensors | 4 multibeams M5 with parallel beams |
