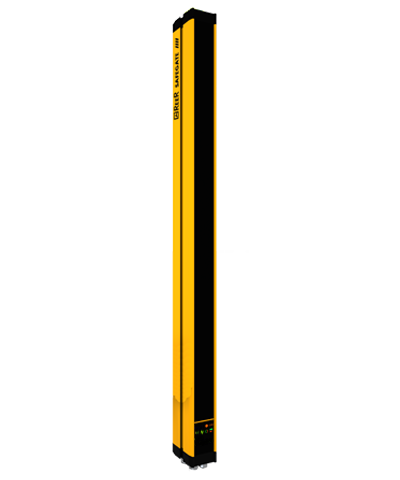

ReeR 1390314: SAFEGATE S 2254
Hand Detection Safety Light Curtain with Automatic/Manual Restart and EDM (No Integrated Muting Function)
| Attribute | Value |
|---|---|
| Safety Level | Type 4 – PL e |
| Protected Height (mm) | 2260 |
| Resolution (mm) | 40 |
| Max. Range (m) | 12 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 4 – SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating Temperature (°C) | – 30 … 55 |
| Response Time (ms) | 20,5 |
| Number of Beams | 76 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | LEDs for light curtain’s status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| MTTFD (ISO13849) years | 106,5 |
| PFHD (IEC 61508) | 2,56E-08 |
| Safety Outputs | 2 fail-safe PNP (400 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Hand |
| Packaging Dimensions Hxlxw (mm) | 145 x 1390 x 200 |
| Product Class | C |
| Custom Tariff | 85365019 |
| Connections | M12 5-pole male connector (emitter), M12 8-pole male connector (receiver) |
| Built-in Muting Lamp | No |
| Controlled Height (mm) | 2250 |
