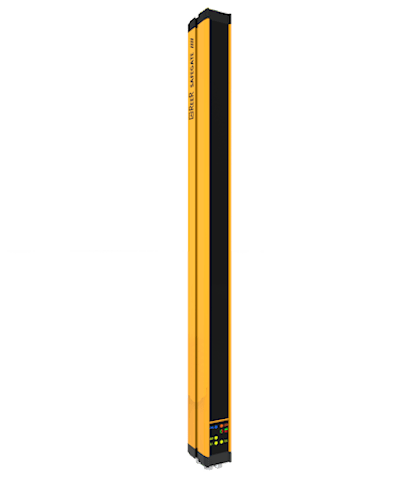

ReeR 1390026: SAFEGATE SM 1051
Finger Detection Safety Light Curtain with Integrated Muting Function. Automatic/Manual Restart and EDM
| Attribute | Value |
|---|---|
| Safety Level | Type 4 – PL e |
| Protected Height (mm) | 1060 |
| Resolution (mm) | 14 |
| Max. Range (m) | 6 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 4 – SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating Temperature (°C) | – 30 … 55 |
| Response Time (ms) | 11,8 |
| Number of Beams | 105 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | LEDs indication for diagnostics, light curtain’s status and Muting sensors status |
| Safety Output Type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| MTTFD (ISO13849) years | 229 |
| PFHD (IEC 61508) | 2,55E-08 |
| Safety Outputs | 2 fail-safe PNP (400 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Finger |
| Packaging Dimensions Hxlxw (mm) | 145 x 1240 x 200 |
| Product Class | B |
| Custom Tariff | 85365019 |
| Connections | M12 5-pole male connector (emitter), M12 12-pole male connector (receiver), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (external Muting lamp) |
| Muting Sensors | External with relay or PNP DARK-ON output, Muting arms kit, Muting brackets with M5 sensors kit |
| Muting Function | Integrated |
| Muting Logic | T (Two way) logic with 2 or 4 sensors crossed or parallel beams. L (One way) logic with 2 sensors crossed or parallel beams |
| Max. Override Time-out | 15 min. |
| Max. Muting Time-out | 30 sec. or 9 hours selectable – Infinite (models with 4 sensors sequential Muting logic only) |
| Built-in Muting Lamp | No |
| Controlled Height (mm) | 1050 |
