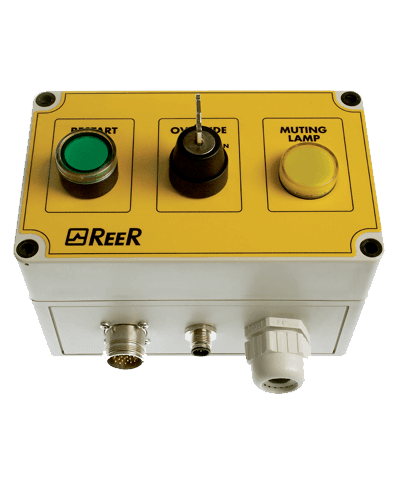

ReeR 1360935: VISION MXJ BOX 3
Connection Box for Vision with Restart. Override and Integrated Muting Function Lamp (2 NO + 1 NC co ntacts)
| Attribute | Value |
|---|---|
| Signalling | LEDs for outputs and Muting/Override status |
| Packaging Dimensions Hxlxw (mm) | 225 x 210 x 150 |
| Product Class | B |
| Custom Tariff | 85365019 |
| Connections | M12 5-pole connector (emitter), M23 19-pole connector (receiver) – Connection box |
| Override Selectors | Yes |
| Built-in Muting Lamp | Yes |
| Safety Devices to Be Connected | All Vision MXL safety light curtains models |
| Restart Button | Yes |
| Safety Relay Outputs | 2 NO + 1 NC (2A at 250 VAC) |
