ReeR 1360684: JANUS MI 4B TRX
Access Control Safety Light Curtain with Integrated Muting Function. Automatic/Manual Restart and EDM. Transceiver (TRX)
| Attribute | Value |
|---|---|
| Safety Level | Type 4 – PL e |
| Protected Height (mm) | 910 |
| Resolution (mm) | Multi-beams |
| Max. Range (m) | 6 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning System | TRX (Transceiver) |
| Safety Level (SIL / PL) | Type 4 – SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating Temperature (°C) | 0 … 55 |
| Response Time (ms) | 10 |
| Number of Beams | 4 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | 7 segment display and LEDs for diagnostics, light curtain’s status and Muting sensors status |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 5,01E-09 |
| Safety Outputs | 2 fail-safe PNP (500 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Access control |
| Packaging Dimensions Hxlxw (mm) | 145 x 1220 x 200 |
| Product Class | B |
| Custom Tariff | 85365019 |
| Connections | M23 19-pole connector, M12 5-pole connector (Muting sensors) |
| Muting Sensors | with relay or PNP DARK-ON output |
| Muting Function | Integrated |

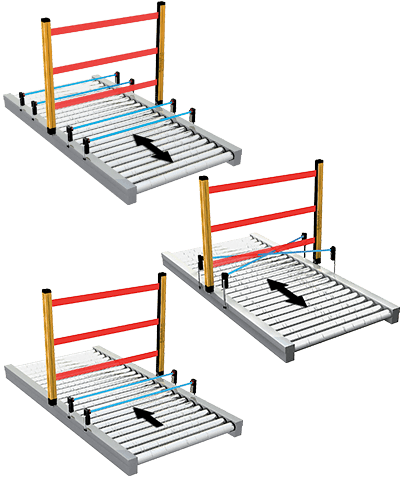

| Muting Logic | T (Two way) logic with 2 or 4 sensors crossed or parallel beams. L (One way) logic with 2 sensors crossed or parallel beams |
| Max. Override Time-out | 15 min. |
| Max. Muting Time-out | 30 sec. or 90 min. selectable – 30 sec. or infinite models with 4 sensors |
| Characteristic Output of Muting Sensors | PNP 100 mA at 24 VDC |
