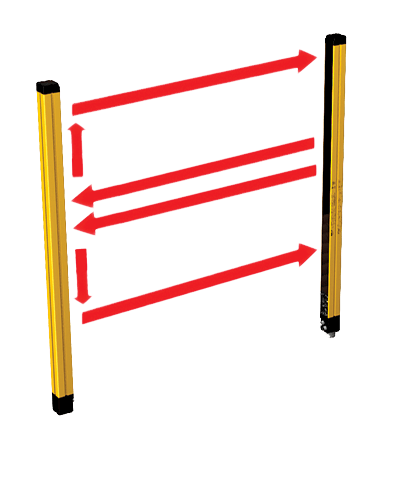

ReeR 1360650: JANUS J 2B TRX M12
Access Control Safety Light Curtain with Automatic/Manual Restart and EDM. M12 connector
| Attribute | Value |
|---|---|
| Safety Level | Type 4 – PL e |
| Protected Height (mm) | 510 |
| Resolution (mm) | Multi-beams |
| Max. Range (m) | 6 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning System | TRX (Transceiver) |
| Safety Level (SIL / PL) | Type 4 – SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating Temperature (°C) | 0 … 55 |
| Response Time (ms) | 7 |
| Number of Beams | 2 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | 7 segment display and LEDs for light curtain’s status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 4,83E-09 |
| Safety Outputs | 2 fail-safe PNP (500 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Access control |
| Operating Range (m) | Up to 6 |
| Packaging Dimensions Hxlxw (mm) | 145 x 820 x 200 |
| Product Class | B |
| Custom Tariff | 85365019 |
| Connections | M12 8-pole connector |
| Overall Height Receiver or TRX Active Element (mm) | 741 |
| Overall Height Emitter or TRX Passive Element (mm) | 723 |
