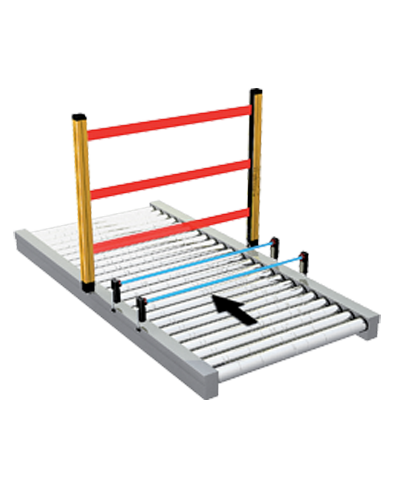

ReeR 1344867: VISION MXL U 1204
Hand Detection Safety Light Curtain with Integrated Muting Function. Automatic/Manual Restart and ED M. L-Logic (Exit Only)
| Attribute | Value |
|---|---|
| Safety Level | Type 2 – PL c |
| Protected Height (mm) | 1210 |
| Resolution (mm) | 40 |
| Max. Range (m) | 8 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 2 – SILCL 1 – PL c – Cat. 2 |
| Operating Temperature (°C) | 0 … 55 |
| Response Time (ms) | 24 |
| Number of Beams | 40 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | LEDs for light curtain’s status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| MTTFD (ISO13849) years | 84,7 |
| PFHD (IEC 61508) | 8,19E-08 |
| Safety Outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Hand |
| Packaging Dimensions Hxlxw (mm) | 145 x 1380 x 200 |
| Product Class | B |
| Custom Tariff | 85365019 |
| Connections | M12 5-pole connector (emitter), M16 12-pole connector (receiver) |
| Muting Function | Integrated |
| Muting Logic | T (Two way) logic with 2 sensors – Crossed beams |
| Max. Override Time-out | 15 min. |
| Max. Muting Time-out | 30 sec.; 90 min. or infinite selectable |
