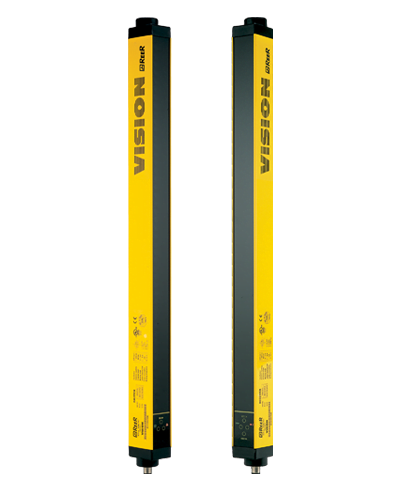

ReeR 1344322: VISION VX 454 M
Hand Detection Safety Light Curtain for Cascading Connection with Automatic/Manual Restart and EDM. Master
| Attribute | Value |
|---|---|
| Safety Level | Type 2 – PL c |
| Protected Height (mm) | 460 |
| Resolution (mm) | 40 |
| Max. Range (m) | 18 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 2 – SILCL 1 – PL c – Cat. 2 |
| Operating Temperature (°C) | 0 … 55 |
| Response Time (ms) | 8 |
| Number of Beams | 15 |
| Max. Length of the Connection Cables (m) | 50 |
| Signalling | 7 segment display and LEDs for light curtain’s status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 1,09E-08 |
| Safety Outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Hand |
| Packaging Dimensions Hxlxw (mm) | 0 x 0 x 0 |
| Product Class | C |
| Custom Tariff | 85365019 |
| Connections | M12 5-pole connector (emitter), M12 8-pole connector (receiver) |
| Master Slave Models | Yes |
