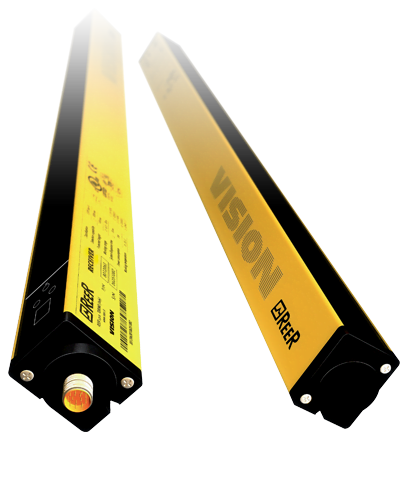

ReeR 1340105: VISION V 902 L – Hand Detection Safety Light Curtain
Hand Detection Safety Light Curtain with Automatic Restart
| Attribute | Value |
|---|---|
| Safety Level | Type 2 – PL c |
| Protected Height (mm) | 910 |
| Resolution (mm) | 20 |
| Max. Range (m) | 6 |
| Restart | Automatic |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 2 – SILCL 1 – PL c – Cat. 2 |
| Operating Temperature (°C) | 0 … 55 |
| Response Time (ms) | 16,5 |
| Number of Beams | 90 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | LEDs for light curtain’s status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| MTTFD (ISO13849) years | 92,14 |
| PFHD (IEC 61508) | 1,79E-08 |
| Safety Outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety Functions | With external module |
| Detection | Hand |
| Packaging Dimensions Hxlxw (mm) | 145 x 1080 x 200 |
| Product Class | B |
| Custom Tariff | 85365019 |
| Connections | M12 5-pole connectors (emitter and receiver) |
