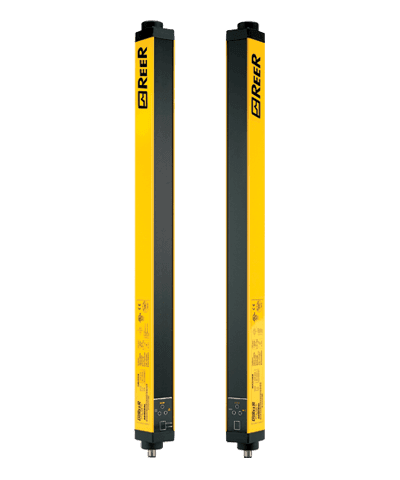

ReeR 1334061: ADMIRAL AX 301 BK
Finger Detection Safety Light Curtain with Blanking Function. Automatic/Manual Restart and EDM
Request a quote
Attribute | Value |
---|---|
Safety Level | Type 4 – PL e |
Protected Height (mm) | 310 |
Resolution (mm) | 14 |
Max. Range (m) | 5 |
Restart | Built-in – User selectable automatic or manual |
Functioning System | Emitter / Receiver |
Safety Level (SIL / PL) | Type 4 – SILCL 3 – PL e – Cat. 4 |
Operating Temperature (°C) | 0 … 55 |
Response Time (ms) | 7,5 |
Number of Beams | 30 |
Max. Length of the Connection Cables (m) | 100 |
Signalling | 7 segment display and LEDs for light curtain’s status and diagnostics |
Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
MTTFD (ISO13849) years | 100 |
PFHD (IEC 61508) | 1,17E-08 |
Safety Outputs | 2 OSSD PNP (500 mA at 24 VDC) |
Safety Functions | With external module |
Detection | Finger |
Packaging Dimensions Hxlxw (mm) | 145 x 450 x 200 |
Product Class | C |
Custom Tariff | 85365019 |
Connections | M12 5-pole connector (emitter), M12 8-pole connector (receiver) |
Blanking Function | Floating |
Blanking With Object Presence Obligation | 1 or 2 beams |
