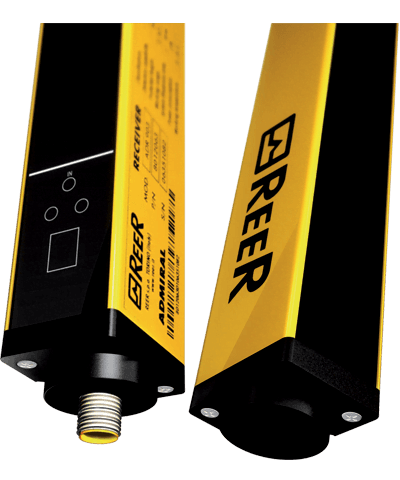

ReeR 1334027: ADMIRAL AX 1201 M

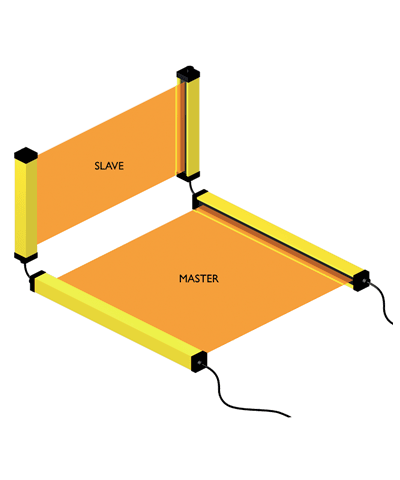

Finger Detection Safety Light Curtain for Cascading Connection with Automatic/Manual Restart and EDM. Master
| Attribute | Value |
|---|---|
| Safety Level | Type 4 – PL e |
| Protected Height (mm) | 1210 |
| Resolution (mm) | 14 |
| Max. Range (m) | 5 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 4 – SILCL 3 – PL e – Cat. 4 |
| Operating Temperature (°C) | 0 … 55 |
| Response Time (ms) | See technical manual |
| Number of Beams | 120 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | 7 segment display and LEDs for light curtain’s status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| MTTFD (ISO13849) years | 73,8 |
| PFHD (IEC 61508) | 0,000000021 |
| Safety Outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Finger |
| Packaging Dimensions Hxlxw (mm) | 0 x 0 x 0 |
| Product Class | C |
| Custom Tariff | 85365019 |
| Connections | M12 5-pole connector (emitter), M12 8-pole (receiver), M12 5-pole for slave connection (emitter and receiver) |
| Master Slave Models | Yes |
