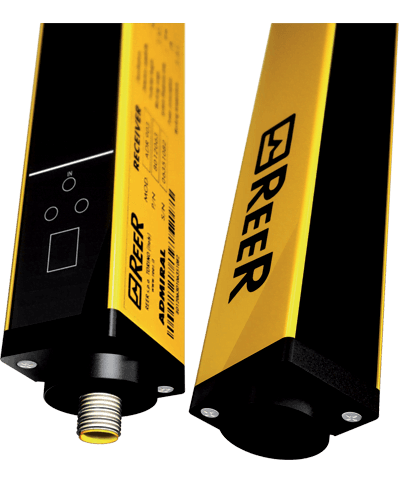

ReeR 1330017: ADMIRAL AD 2254
Hand Detection Safety Light Curtain with Automatic Restart
| Attribute | Value |
|---|---|
| Safety Level | Type 4 – PL e |
| Protected Height (mm) | 2260 |
| Resolution (mm) | 40 |
| Max. Range (m) | 18 |
| Restart | Automatic |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 4 – SILCL 3 – PL e – Cat. 4 |
| Operating Temperature (°C) | 0 … 55 |
| Response Time (ms) | 11 |
| Number of Beams | 75 |
| Max. Length of the Connection Cables (m) | 50 |
| Signalling | 7 segment display and LEDs for light curtain’s status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Safety Outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety Functions | With external module |
| Detection | Hand |
| Packaging Dimensions Hxlxw (mm) | 0 x 0 x 0 |
| Product Class | B |
| Custom Tariff | 85365019 |
| Connections | M12 5-pole connectors |
