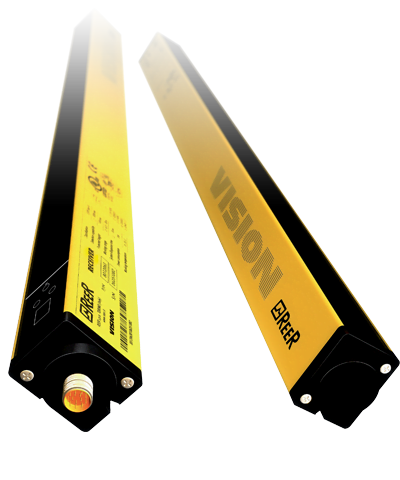

ReeR 1244605: VISION VX 4B LR WT

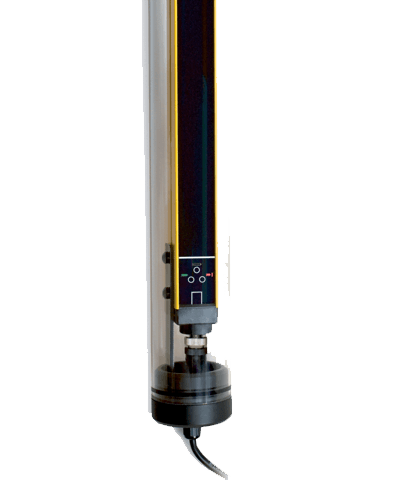

Access Control Safety Light Curtain with Watertight Enclosure. Automatic/Manual Restart and EDM. Long Range. IP67. Prewired with 10 m Lead Cable
| Attribute | Value |
|---|---|
| Safety Level | Type 2 – PL c |
| Protected Height (mm) | 900 |
| Resolution (mm) | Multi-beams |
| Max. Range (m) | 50 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 2 – SILCL 1 – PL c – Cat. 2 |
| Operating Temperature (°C) | 0 … 55 |
| Response Time (ms) | 5 |
| Number of Beams | 4 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | 7 segment display and LEDs for light curtain’s status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 9,15E-09 |
| Light Curtain Technical Data | Refer to VX LR models table |
| Safety Outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety Functions | Integrated |
| Special Versions | Watertight enclosure |
| Detection | Access control |
| Protective Enclosures | Harsh working environments |
| Packaging Dimensions Hxlxw (mm) | 145 x 1470 x 200 |
| Product Class | C |
| Custom Tariff | 85365019 |
