Safety door bolts are essential components in industrial safety systems, designed to ensure secure locking of guard doors and machine access points. These bolts are commonly integrated with safety interlock switches to prevent unintended access to hazardous machinery, enhancing both personnel safety and operational reliability.
Safety door bolts play a crucial role in reinforcing broader machine safety systems. As part of integrated safety devices, they help enforce strict safety protocols across industrial environments—whether used with safety gates, machine guards, or advanced Safety Interlock Switch mechanisms. These bolts are designed not only to meet but often exceed international standards, ensuring a consistent level of security across operations. By incorporating such key systems, businesses gain enhanced operational reliability and, more importantly, peace of mind knowing personnel are protected. With a wide range of products from brands like Euchner and Pizzato, Venus Automation provides tailored solutions that meet the evolving safety requirements of modern industries.
Understanding Safety Door Bolts
What Are Safety Door Bolts?
Safety door bolts are mechanical or electromechanical locking devices used in combination with safety switches. They physically secure doors, gates, or guards on industrial equipment, ensuring that they cannot be opened while machinery is in motion or unsafe conditions exist.
Role in Machine Guarding and Access Control
In machine guarding systems, safety bolts provide an additional layer of protection beyond sensors and relays. They are often part of comprehensive safety interlock systems that include safety relays, interlock switches, and safety controllers. Their primary function is to enforce controlled access and restrict entry until a safe stop is confirmed.
Integration with Safety Interlock Devices
Safety bolts are often paired with interlock switches from leading brands such as Euchner and Pizzato. These integrated systems ensure that access is only granted once all safety conditions are met, helping meet stringent safety standards like ISO 14119.
Types of Safety Door Bolts

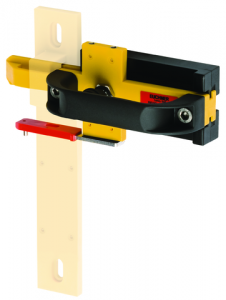

Euchner NP, NZ, and STA Series
Euchner offers a range of safety bolts tailored for different applications. The NP series provides simple bolt mechanisms, while the NZ and STA series offer advanced features such as integrated escape release and high holding force. These are ideal for industrial environments requiring robust safety interlock solutions.
Pizzato Safety Bolt Options
Pizzato manufactures heavy-duty safety bolts designed for harsh industrial settings. Their solutions often include compatibility with RFID-based safety switches, rugged stainless steel housings, and options for both mechanical and solenoid-operated locking systems.
Bolt Systems with Escape Release and Guard Locking
Many bolt systems, including those from Euchner and Pizzato, offer escape release functionality for emergency exit. Guard locking mechanisms ensure that the safety door remains locked under hazardous conditions, making these bolts critical in achieving maximum safety.
Mechanical vs Electromechanical Safety Bolts
Mechanical safety bolts rely on physical engagement, while electromechanical bolts include electrical inputs for safety signal integration. Electromechanical options enable real-time status monitoring, lock status feedback, and integration into safety PLCs or relays.
Key Features and Technical Specifications
Locking Mechanism and Safety Function
Both Euchner and Pizzato safety bolts feature robust locking mechanisms designed for use with safety interlock switches. These mechanisms provide a secure hold during operation and only release when the safety function confirms a stop condition.
Materials, Housing Design, and Durability
Safety bolts are typically made from high-strength materials like stainless steel or reinforced thermoplastics. The housing is often IP-rated to ensure protection against dust, water, and mechanical impact, ideal for harsh environments.
Ingress Protection and Environmental Resistance
Ingress protection (IP) ratings such as IP67 are common among industrial safety bolts. These ratings ensure resistance to contaminants, moisture, and temperature extremes—critical for reliability in washdown applications or outdoor use.
Compliance with ISO 14119 and Other Safety Standards
Top-tier products from Euchner and Pizzato comply with ISO 14119 and other international safety standards. This ensures that safety bolts contribute effectively to the overall safety category (e.g., Category 3 or 4 systems).
Industrial Applications
Machine Guarding for Automation Equipment
Safety bolts are widely used in automated manufacturing, packaging, and robotic cells. They provide mechanical locking that complements light curtains, safety relays, and other protective devices.
Access Protection for Doors and Hatches
In addition to machine guarding, these bolts protect access points like service hatches, inspection covers, and enclosures. They ensure only authorized and safe access during maintenance or changeovers.
Use in Robotics, Packaging, and Processing Plants
High-risk applications in robotics and packaging lines often require fail-safe mechanical locking. Safety bolts offer a reliable solution that can withstand vibration, high load forces, and frequent actuation.
Choosing the Right Safety Bolt
Evaluating Functional Requirements and Safety Categories
Selection depends on required performance levels, safety functions, and risk assessments. Factors such as actuation force, holding torque, and lock monitoring should align with the intended safety category.
Compatibility with Euchner and Pizzato Safety Switches
Ensure the bolt mechanism is compatible with your interlock switches. Euchner bolts pair well with NP, NZ, and STA series switches, while Pizzato offers integrated solutions for its own interlock systems.
Considerations for Harsh and Washdown Environments
For food processing, mining, or chemical plants, prioritize bolts with high ingress protection, corrosion resistance, and chemical durability. Stainless steel and sealed housings are essential features.
Product Range at Venus Automation
Euchner Bolt Solutions (NP, NZ, STA Series)
Venus Automation stocks a wide range of Euchner bolts, including the NP for basic locking, NZ for robust mechanical interlocking, and STA for electromechanical options with escape release.
Pizzato Safety Bolt Systems
We also carry Pizzato safety bolt systems with high-performance locking and compatibility with RFID safety switches. These are designed for demanding industrial environments.
Lead Times, Datasheets, and Support Services
Venus Automation offers fast lead times, detailed datasheets, and expert support for bolt selection and integration. Our team ensures you get the right solution for your safety application.
Frequently Asked Questions
What differentiates Euchner NP, NZ, and STA bolts?
The NP is a basic mechanical bolt, NZ adds enhanced locking features, and STA includes electromechanical actuation with escape release. Each serves a different safety level and application need.
Are Pizzato bolts compatible with my existing interlock system?
Pizzato bolts are designed to integrate seamlessly with their own interlock switches, but adapter plates and mechanical compatibility with other systems may be available. Contact Venus Automation for advice.
Can safety bolts be used with sliding, hinged, or lift-off guards?
Yes, both Euchner and Pizzato safety bolts support a range of door types. Specific models are optimized for different guard configurations to ensure safe operation in any scenario.
