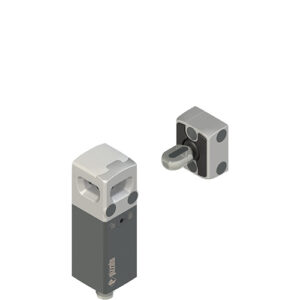

Pizzato NX P42AZ1SMK-F61 | NX series RFID safety switch with lock
NX series RFID safety switch with lock
| Attribute | Value |
|---|---|
| Protection degree: | IP67 according to EN 60529 and IP69K according to ISO 20653 |
| Inputs And Outputs: | 2 safety inputs IS1, IS22 safety outputs OS1, OS21 signalling output O3 actuator inserted1 signalling output O4 actuator locked2 inputs for solenoid activation IE1, IE21 programming / reset input I3 |
| Actuator: | Complete with actuator with high coding level VN NX-F61 |
| Type of Operation: | Mode 2 of bistable solenoid. Activation of OS1 and OS2 with inserted actuator. |
| Actuator recognition: | Reprogrammable actuator |
| Auxiliary release: | Release with hexagonal key at front |
| Type of integrated cable or connector: | M12 connector, 12-pole |
| Cover: | RGB-LED (illuminated) cover with multicolour signalling |
| Product Number | Variant Description |
|---|---|
| NX B52AZ1SMK-F61 | NX series RFID safety switch with lock |
| NX P52AZ1SMK-F61 | NX series RFID safety switch with lock |
| NX B52AZ1SMK-F60 | NX series RFID safety switch with lock |
| NX B31AZ1SMK-F60 | NX series RFID safety switch with lock |
| NX B42AZ1SMK-F61 | NX series RFID safety switch with lock |
| NX P52AZ1SMK | NX series RFID safety switch with lock |
| NX P52AZ1SMK-F60 | NX series RFID safety switch with lock |
| NX P42AZ1SMK-F60 | NX series RFID safety switch with lock |
| NX P31AZ1SMK-F60 | NX series RFID safety switch with lock |
| NX B42AZ1SMK | NX series RFID safety switch with lock |
| NX B31AZ1SMK-F61 | NX series RFID safety switch with lock |
| NX B42AZ1SMK-F60 | NX series RFID safety switch with lock |
| NX P42AZ1SMK | NX series RFID safety switch with lock |
| NX B52AZ1SMK | NX series RFID safety switch with lock |
| NX P31AZ1SMK-F61 | NX series RFID safety switch with lock |
