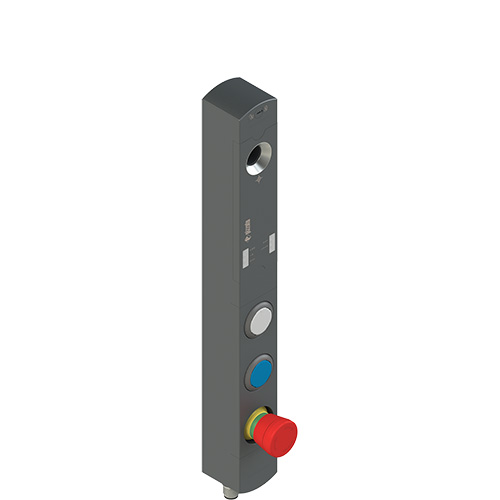

Pizzato NS D4AZ1SRK-N002 | NS series safety switch with lock and integrated control devices

NS series safety switch with lock and integrated control devices

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Protection degree: IP65 according to EN 60529
    Housing: Technopolymer housing
    Working method: D working method, locked actuator with de-energized solenoidMode 1 OS safety outputs active with locked protection
    Actuator: Without actuator
    Type of Connection: Two M12 connectors (12-pole + 12-pole)
    Inputs And Outputs: 2 safety inputs IS1-IS2,2 safety outputs OS1-OS2,1 signalling output O3 actuator inserted,1 signalling output O4 actuator locked,2 solenoid activation inputs IE1-IE2,1 programming / reset input I3
    Auxiliary release with variable orientation: Front screw release
    Output Connection Direction: Cable or connector at bottom
    Button configuration: 3 devices
    Position 1: 1 pushbutton white 1NO
    Position 2: 1 pushbutton blue 1NO
    Position 3: 1 red emergency stop button, turn to release, 2NC
    Product Number Variant Description
    NS D4CE1SRK-N054 NS series safety switch with lock and integrated control devices
    NS D4CE1SRK-N231 NS series safety switch with lock and integrated control devices
    NS D4CE1SRK-N243 NS series safety switch with lock and integrated control devices
    NS D4CE1SRK-N246 NS series safety switch with lock and integrated control devices
    NS D4CE1SRK-N001 NS series safety switch with lock and integrated control devices
    NS D4CE1SRK-N002 NS series safety switch with lock and integrated control devices
    NS D4CE1SRK-N005 NS series safety switch with lock and integrated control devices
    NS D4SE1SRK-N002 NS series safety switch with lock and integrated control devices
    NS D4SE1SRK-N005 NS series safety switch with lock and integrated control devices
    NS D4SE1SRK-N111 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N112 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N114 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N113 NS series safety switch with lock and integrated control devices
    NS E4TE1SRK-N113 NS series safety switch with lock and integrated control devices
    NS E4TE1SRK-N242 NS series safety switch with lock and integrated control devices
    NS E4TE1SRK-N228 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N001 NS series safety switch with lock and integrated control devices
    NS E4ZZ1SRK-N002 NS series safety switch with lock and integrated control devices
    NS E4ZZ1SRK-N115 NS series safety switch with lock and integrated control devices
    NS E4TE1SRK-N002 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N187 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N194 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N115 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N005 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N110 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N111 NS series safety switch with lock and integrated control devices
    NS G4CE1SRK-N243 NS series safety switch with lock and integrated control devices
    NS G4AZ1SRK-N187 NS series safety switch with lock and integrated control devices
    NS D4AZ1SRK-N007 NS series safety switch with lock and integrated control devices
    NS L4AZ1SRK-N187 NS series safety switch with lock and integrated control devices
    NS H4TE1SRK-N242 NS series safety switch with lock and integrated control devices
    NS M4TE1SRK-N242 NS series safety switch with lock and integrated control devices
    NS L4CE1SRK-N243 NS series safety switch with lock and integrated control devices
