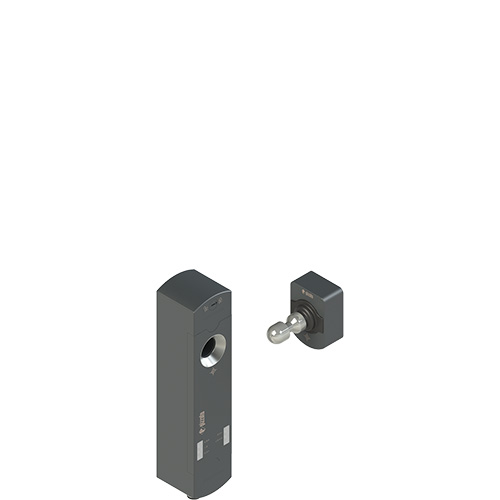

Pizzato NS D4AZ1SP0.2 | NS series safety locking switch
NS series safety locking switch
| Attribute | Value |
|---|---|
| Protection degree: | IP67 according to EN 60529 and IP69K according to ISO 20653 |
| Housing: | Technopolymer housing |
| Working method: | D working method, locked actuator with de-energized solenoidMode 1 OS safety outputs active with locked protection |
| Actuator: | Complete with actuator with high coding level VN NS-F41 |
| Type of Connection: | M12 connector, 8-pole, for stand-alone connections |
| Inputs And Outputs: | 2 safety inputs IS1-IS2,2 safety outputs OS1-OS2,1 signalling output O3 actuator inserted,1 signalling output O4 actuator locked,2 solenoid activation inputs IE1-IE2,1 programming / reset input I3 |
| Auxiliary release with variable orientation: | Front screw release |
| Output Connection Direction: | Cable or connector at bottom |
| Button configuration: | No device |
