Pizzato NG 2D9D423G-F31 | NG series safety switch with lock and integrated control devices

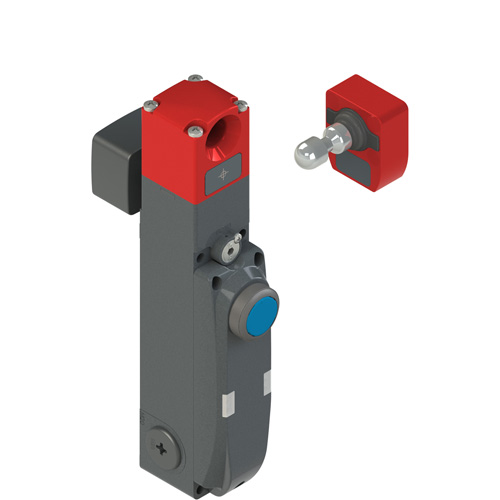

NG series safety switch with lock and integrated control devices, with actuator
| Attribute | Value |
|---|---|
| Cover, Position 1: | 1 pushbutton blue 1NO+1NC |
| Housing: | Metal housing, three threaded M20x1,5 conduit entries |
| Head: | Rotating head with Remote Escape Release |
| Working method: | D working method, locked actuator with de-energized solenoid |
| Inputs And Outputs: | 2 safety inputs IS1-IS2,2 safety outputs OS1-OS2,1 signalling output O3 actuator inserted,1 signalling output O4 actuator locked,I4 or IE1-IE2 inputs for solenoid activation,1 input I3 actuator programming / reset |
| Safety Output Activation OS: | Activation mode 2 safety outputs active with actuator inserted |
| Actuator: | Complete with actuator with high coding level VN NG-F31 |
| Type of Connection: | Without connector |
| Cover configuration: | 1 device |
