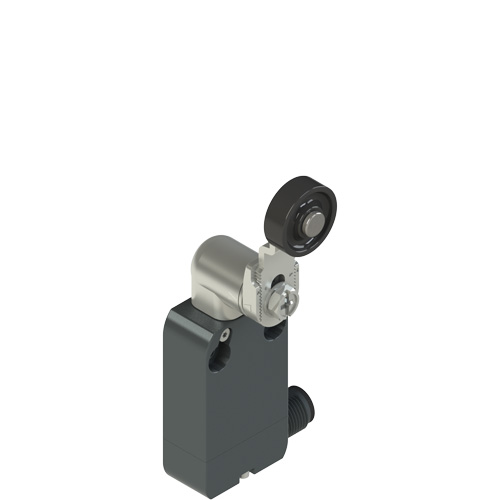

Pizzato NA B112KG | Modular prewired switch with adjustable shaped metal revolving lever
Modular prewired switch with adjustable shaped metal revolving lever
| Attribute | Value |
|---|---|
| Protection degree: | IP67 according to EN 60529 and IP69K according to ISO 20653 |
| Housing: | Metal housing, 20 mm fixing points |
| Head: | Metal head for actuators with revolving lever |
| Contact Block: | 1NO+1NC snap action (B11) |
| Positive opening: | Yes |
| Kind of Connection: | Metal connector M12 from right 5 poles |
