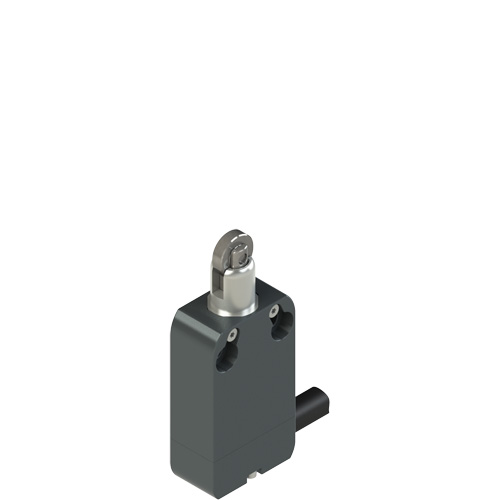

Pizzato NA B110BB-DN2 | Modular prewired switch with roller plunger
Modular prewired switch with roller plunger
Request a quote
Attribute | Value |
---|---|
Protection degree: | IP67 according to EN 60529 and IP69K according to ISO 20653 |
Housing: | Metal housing, 20 mm fixing points |
Head: | Roller plunger |
Contact Block: | 1NO+1NC snap action (B11) |
Positive opening: | Yes |
Kind of Connection: | Metal connector 1NO+1NC |
Cable: | PVC 5×0,75 mm², lenght 2 m, 5 wires |
Product Number | Variant Description |
---|---|
NA B120GB-DN5 | Modular prewired switch with plunger with Ø 6 mm sphere |
NA B010BB-DN5 | Modular prewired switch with roller plunger |
NA B010BB-DN2 | Modular prewired switch with roller plunger |
NA B010BB-DN1 | Modular prewired switch with roller plunger |
NA B010BB-DMK | Modular prewired switch with roller plunger |
NA B010AE-DN0.35 | Modular prewired switch wtih plunger with external rubber gasket |
NA B020AB-DN7 | Modular prewired switch with plunger |
NA B020AB-DN5 | Modular prewired switch with plunger |
NA B020AB-DN2W5 | Modular prewired switch with plunger |
NA B020AB-DN2 | Modular prewired switch with plunger |
NA B020AB-DN10 | Modular prewired switch with plunger |
NA B020AB-DN1 | Modular prewired switch with plunger |
NA B020AB-DMKW5 | Modular prewired switch with plunger |
NA B020AB-DMK | Modular prewired switch with plunger |
NA B020AA-SMK | Modular prewired switch with short plunger |
NA B110FB-DH2T6 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B010BB-SMK | Modular prewired switch with roller plunger |
NA B110CV-DR2 | Modular prewired switch with adjustable offset roller lever |
NA B110CV-DN5 | Modular prewired switch with adjustable offset roller lever |
NA B110CV-DN2 | Modular prewired switch with adjustable offset roller lever |
NA B110CV-DN15 | Modular prewired switch with adjustable offset roller lever |
NA B110CV-DN1 | Modular prewired switch with adjustable offset roller lever |
NA B110CV-DMK | Modular prewired switch with adjustable offset roller lever |
NA B110CP-SMK | Modular prewired switch with unidirectional roller lever |
NA B110CP-SAK | Modular prewired switch with unidirectional roller lever |
NA B110EE-DMK | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110EE-DH3 | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110EE-DH2T6 | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110EE-DH2 | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110EB-SMK | Modular prewired switch with plunger with M12 threaded bearing |
NA B110EB-SAK | Modular prewired switch with plunger with M12 threaded bearing |
NA B020AA-DN2 | Modular prewired switch with short plunger |
NA B110FB-DH2 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-DH10 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-DH1 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110EE-SMK | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110EE-SAK | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110EE-DN5 | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110EE-DN3 | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110EE-DN2 | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110EE-DN1 | Modular prewired switch with plunger, M12 threaded bearing and external rubber gasket |
NA B110GB-DN5 | Modular prewired switch with plunger with Ø 6 mm sphere |
NA B110GB-DN2W5 | Modular prewired switch |
NA B110GB-DN2 | Modular prewired switch with plunger with Ø 6 mm sphere |
NA B110GB-DMKT6 | Modular prewired switch with plunger with Ø 6 mm sphere |
NA B110GB-DMK | Modular prewired switch with plunger with Ø 6 mm sphere |
NA B110FB-SMK | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-SAKR30 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-SAK | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-DN5R44 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-DN5H0 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-DN5 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-DN30 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-DN3 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-DN2W5 | Modular prewired switch |
NA B110FB-DN2R30 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110FB-DN2H0 | Modular prewired switch with plunger with roller and M12 threaded bearing |
NA B110HB-SMK | Modular prewired switch with spring rod with plastic pin |
NA B110HB-SAKW5 | Modular prewired switch with spring rod with plastic pin 90° trasmission block |
NA B110HB-SAK | Modular prewired switch with spring rod with plastic pin |
NA B110HB-DN5 | Modular prewired switch with spring rod with plastic pin |
NA B110HB-DN2W5 | Modular prewired switch with spring rod with plastic pin 90° trasmission block |
NA B110HB-DN2 | Modular prewired switch with spring rod with plastic pin |
NA B110HB-DN1 | Modular prewired switch with spring rod with plastic pin |
NA B110HB-DMKW5 | Modular prewired switch with spring rod with plastic pin 90° trasmission block |
NA B110HB-DMKT6 | Modular prewired switch with spring rod with plastic pin |
NA B110HB-DMK | Modular prewired switch with spring rod with plastic pin |
NA B110HB-DH10T6 | Modular prewired switch with spring rod with plastic pin |
NA B110HB-DH1 | Modular prewired switch with spring rod with plastic pin |
NA B110GB-SMKT6 | Modular prewired switch with plunger with Ø 6 mm sphere |
NA B110GB-SMK | Modular prewired switch with plunger with Ø 6 mm sphere |
NA B110GB-SAK | Modular prewired switch with plunger with Ø 6 mm sphere |
NA B110GB-DN5W5 | Modular prewired switch with plunger with Ø 6 mm sphere |
NA B110HE-SMK | Modular prewired switch with spring rod |
NA B110HE-SAKW5 | Modular prewired switch with spring rod 90° trasmission block |
NA B110HE-SAK | Modular prewired switch with spring rod |
NA B110HE-DN5 | Modular prewired switch with spring rod |
NA B110HE-DN2W5 | Modular prewired switch with spring rod 90° trasmission block |
NA B110HE-DN2 | Modular prewired switch with spring rod |
NA B110HE-DN10W5 | Modular prewired switch with spring rod 90° trasmission block |
NA B110HE-DN10 | Modular prewired switch with spring rod |
NA B110HE-DMKW5 | Modular prewired switch with spring rod 90° trasmission block |
