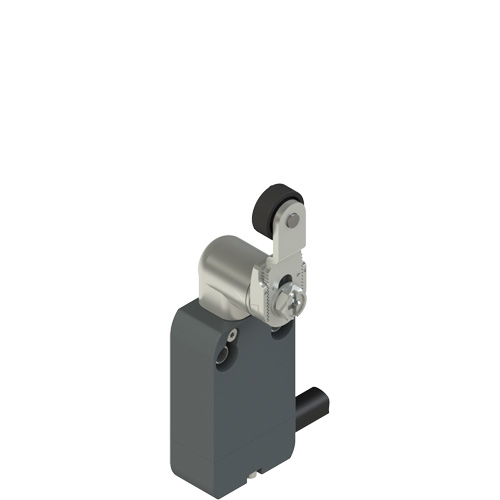

Pizzato NA B102KC-DN2 | Modular prewired switch with adjustable shaped metal revolving lever diam. 14 roller
Modular prewired switch with adjustable shaped metal revolving lever diam. 14 roller
Request a quote
Attribute | Value |
---|---|
Protection degree: | IP67 according to EN 60529 and IP69K according to ISO 20653 |
Housing: | Technopolymer housing, 20 mm fixing points |
Head: | Metal head for actuators with revolving lever |
Contact Block: | 1NO+1NC snap action (B11) |
Positive opening: | Yes |
Kind of Connection: | Technopolymer connector 1NO+1NC |
Cable: | PVC 4×0,75 mm², lenght 2 m, 4 wires |
Product Number | Variant Description |
---|---|
NF G102KC-DN2 | Modular prewired switch with adjustable shaped metal revolving lever diam. 14 roller |
NA B102KB-DN2 | Modular prewired switch with adjustable straight metal revolving lever roller |
NF B102KC-DN2 | Modular prewired switch with adjustable shaped metal revolving lever diam. 14 roller |
