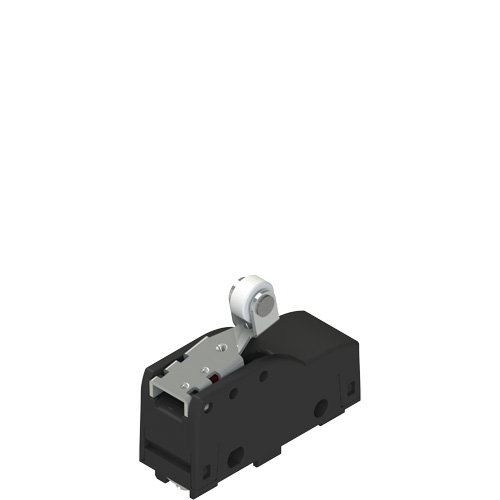

Name: Pizzato MK V11F59 Microswitch with roller lever
Brand: Venus Automation
SKU: MK V11F59
Availability: InStock

Pizzato MK V11F59 | Microswitch with roller lever

Microswitch with roller lever

Specifications Compliance & Variations

Attribute	Value
Housing:	Technopolymer housing
Actuator:	With roller lever (l= 17.8mm)
Contact Block:	1NO+1NC changeover
Positive opening:	Yes
Ambient temperature:	From -25°C to +85°C
Terminal type:	Screws with self-lifting plate
Maximum protection degree:	IP00 without terminal coverIP20 with terminal cover VF C01, VF C03IP40 with terminal cover VF MKCx1x, VF C02
Actuation type:	Back direct action

Product Number	Variant Description
MK H11F59	Microswitch with roller lever
MK V11F59-R16T7	Microswitch with roller lever
MK V11F59-R16	Microswitch with roller lever
MK G11F59	Microswitch with roller lever
MK V11F53	Microswitch with roller lever
MK H12F59	Microswitch with roller lever
MK H11F53	Microswitch with roller lever
MK F11F53	Microswitch with roller lever
MK F11F59-R16	Microswitch with roller lever
MK V11F59-T6	Microswitch with roller lever
MK F11F59	Microswitch with roller lever
MK V12F59	Microswitch with roller lever
MK V12F59-R16	Microswitch with roller lever
MK F11F59-R16T7	Microswitch with roller lever
