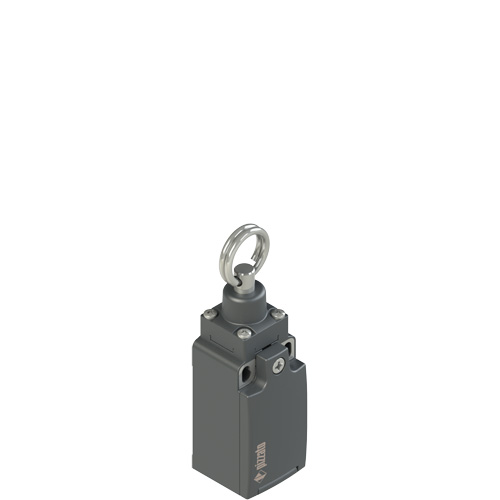

Pizzato FR 976-M2 | Position switch for rope actuation

Position switch for rope actuation

Request a quote

    Attribute Value
    Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653
    Housing: Technopolymer housing, one threaded M20x1,5 conduit entry (FR series)
    Head: For rope actuation
    Contact Block: 2NC slow action (B9)
    Note: Actuator 76 in rest position keep contact block activated. Consequently all NO and NC contacts are inverted in rest position.
    Product Number Variant Description
    FD 976 Position switch for rope actuation
    FL 976 Position switch for rope actuation
    FP 976 Position switch for rope actuation
    FP 976-M2 Position switch for rope actuation
    FM 976 Position switch for rope actuation
    FM 976-M2 Position switch for rope actuation
    FL 976-M2 Position switch for rope actuation
    FL 976-T6 Position switch for rope actuation
    FX 976-M2T6 Position switch for rope actuation
    FZ 976-M2 Position switch for rope actuation
    FZ 976 Position switch for rope actuation
    FX 976 Position switch for rope actuation
    FX 976-M2 Position switch for rope actuation
    FR 976 Position switch for rope actuation
    FD 976-M2 Position switch for rope actuation
    FD 976-M2T6 Position switch for rope actuation
