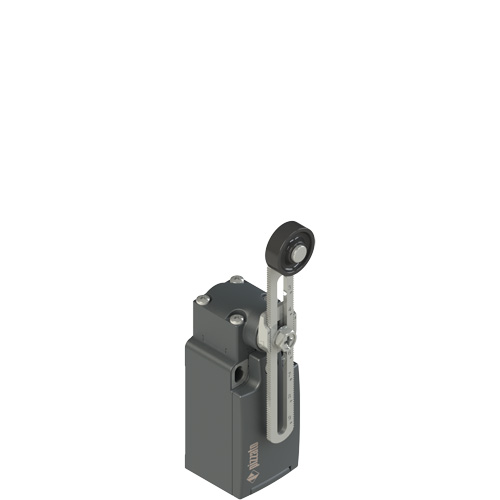

Pizzato FR 955 | Position switch with adjustable lever and roller
Position switch with adjustable lever and roller
| Attribute | Value |
|---|---|
| Protection degree: | IP67 according to EN 60529 and IP69K according to ISO 20653 |
| Housing: | Technopolymer housing, one threaded M20x1,5 conduit entry (FR series) |
| Head: | Regular head for rotating levers |
| Actuator: | With adjustable technopolymer roller lever, 20 mm diameter |
| Contact Block: | 2NC slow action (B9) |
| Positive opening: | Yes (with lever adjusted to maximum length) |
| Product Number | Variant Description |
|---|---|
| FX 955 | Position switch with adjustable lever and roller |
| FZ 955 | Position switch with adjustable lever and roller |
| FM 955 | Position switch with adjustable lever and roller |
