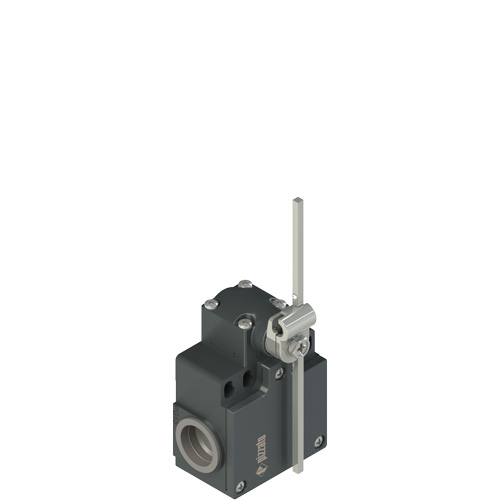

Pizzato FR 733 | Position switch with adjustable square rod lever
Position switch with adjustable square rod lever
Request a quote
Attribute | Value |
---|---|
Protection degree: | IP67 according to EN 60529 |
Housing: | Metal housing, two threaded PG 13,5 conduit entries (FZ series) |
Head: | For rotating levers |
Actuator: | With adjustable square stainless steel rod lever 3x3x125 mm |
Contact Block: | 1NO+1NC slow action, overlapped contacts (B7) |
Product Number | Variant Description |
---|---|
FP 733 | Position switch with adjustable square rod lever |
FZ 733 | Position switch with adjustable square rod lever |
FD 733 | Position switch with adjustable square rod lever |
FM 733 | Position switch with adjustable square rod lever |
FX 733 | Position switch with adjustable square rod lever |
FL 733 | Position switch with adjustable square rod lever |
