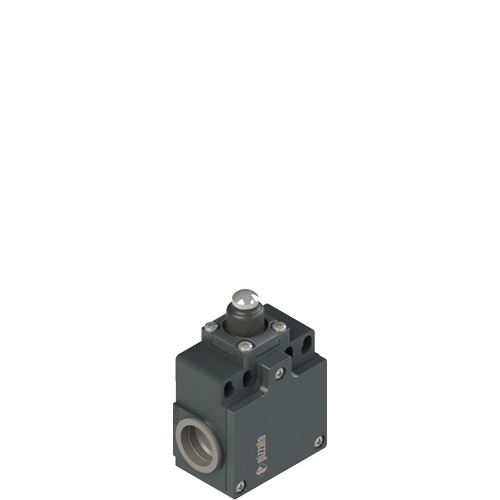

Pizzato FR 708 | Position switch with piston plunger
Position switch with piston plunger
| Attribute | Value |
|---|---|
| Protection degree: | IP67 according to EN 60529 |
| Housing: | Metal housing, two threaded PG 13,5 conduit entries (FZ series) |
| Head: | With piston plunger |
| Contact Block: | 1NO+1NC slow action, overlapped contacts (B7) |
| Positive opening: | Yes |
| Product Number | Variant Description |
|---|---|
| FD 708 | Position switch with piston plunger |
| FX 708 | Position switch with piston plunger |
| FM 708 | Position switch with piston plunger |
| FP 708 | Position switch with piston plunger |
| FZ 708 | Position switch with piston plunger |
| FL 708 | Position switch with piston plunger |
