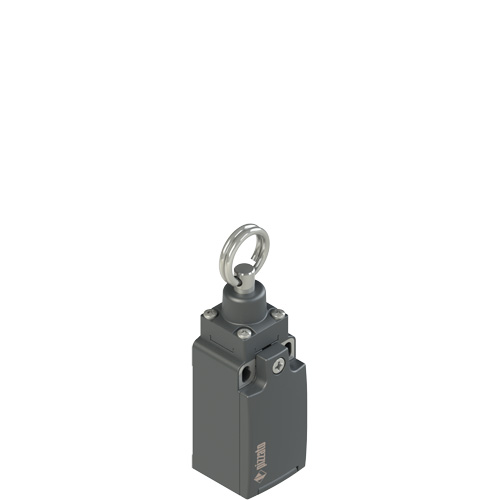

Pizzato FR 576 | Position switch for rope actuation
Position switch for rope actuation
| Attribute | Value |
|---|---|
| Protection degree: | IP67 according to EN 60529 and IP69K according to ISO 20653 |
| Housing: | Technopolymer housing, one threaded PG 13,5 conduit entry (FR series) |
| Head: | For rope actuation |
| Contact Block: | 1NO+1NC snap action (B5) |
| Note: | Actuator 76 in rest position keep contact block activated. Consequently all NO and NC contacts are inverted in rest position. |
| Product Number | Variant Description |
|---|---|
| FD 576 | Position switch for rope actuation |
| FX 576 | Position switch for rope actuation |
| FZ 576 | Position switch for rope actuation |
| FM 576 | Position switch for rope actuation |
| FL 576 | Position switch for rope actuation |
| FP 576 | Position switch for rope actuation |
