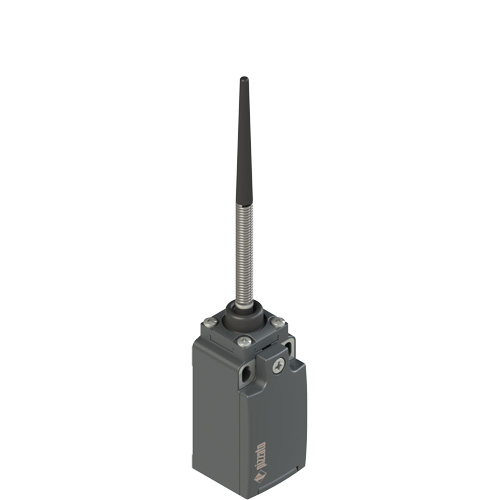

Pizzato FR 520 | Position switch
Position switch, coil spring with plastic point
| Attribute | Value |
|---|---|
| Protection degree: | IP67 according to EN 60529 |
| Housing: | Technopolymer housing, one threaded PG 13,5 conduit entry (FR series) |
| Head: | With coil spring with plastic point |
| Contact Block: | 1NO+1NC snap action (B5) |
| Product Number | Variant Description |
|---|---|
| FD 520 | Position switch, coil spring with plastic point |
| FP 520 | Position switch, coil spring with plastic point |
| FM 520 | Position switch, coil spring with plastic point |
| FX 520 | Position switch, coil spring with plastic point |
| FZ 520 | Position switch, coil spring with plastic point |
| FL 520 | Position switch, coil spring with plastic point |
