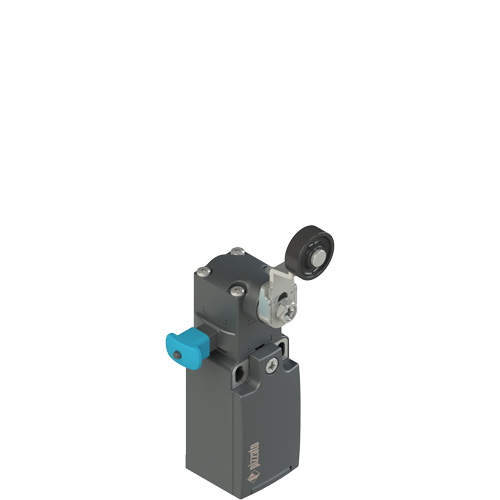

Pizzato FR 2057 | Position switch with roller lever
Position switch with roller lever
| Attribute | Value |
|---|---|
| Protection degree: | IP67 according to EN 60529 and IP69K according to ISO 20653 |
| Housing: | Technopolymer housing, one threaded M20x1,5 conduit entry (FR series) |
| Head: | With reset device, for rotating levers |
| Actuator: | With long tecnhopolymer roller lever, 20 mm diameter |
| Contact Block: | 1NO+2NC slow action (B20) |
| Positive opening: | Yes |
| Product Number | Variant Description |
|---|---|
| FM 2057 | Position switch with roller lever |
| FD 2057 | Position switch with roller lever |
| FZ 2057 | Position switch with roller lever |
| FX 2057 | Position switch with roller lever |
| FP 2057 | Position switch with roller lever |
| FL 2057 | Position switch with roller lever |
