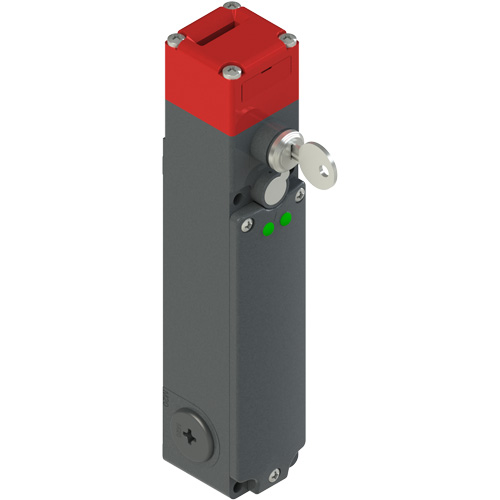

Pizzato FG 61BD5D0A | FG series safety switch with separate actuator with lock
FG series safety switch with separate actuator with lock
| Attribute | Value |
|---|---|
| Protection degree: | IP67 according to EN 60529 with cable gland having equal or higher protection degree |
| Housing: | Metal housing, three M20x1,5 cable entries |
| Head: | Rotating head with lock auxiliary release device |
| Working method: | D working method, locked actuator with de-energized solenoid |
| Actuator: | Without actuator |
| Contact Block: | 2NO+2NC moved by actuator |
| Positive opening: | Yes |
| Power: | 24 Vac/dc |
| LED: | 2 green LED switched-on by the solenoid power supply |
| Product Number | Variant Description |
|---|---|
| FY 61BD5D0A | FY series safety switch with separate actuator with lock |
| FG 61BD5D0Z | FG series safety switch with separate actuator with lock |
