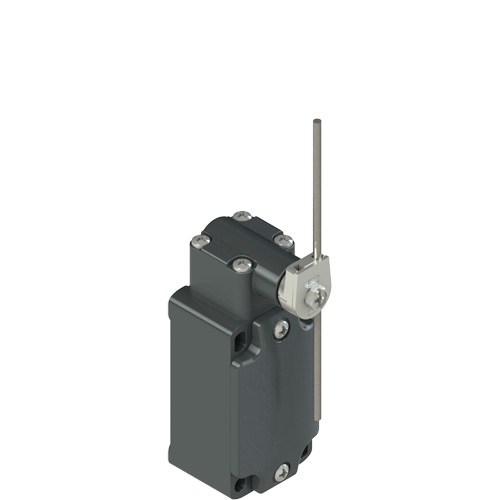

Pizzato FD 232-M2 | Position switch with adjustable round rod lever
Position switch with adjustable round rod lever
Request a quote
Attribute | Value |
---|---|
Protection degree: | IP67 according to EN 60529 |
Housing: | Metal housing, one threaded PG 13,5 conduit entry (FD series) |
Head: | Regular head for rotating levers |
Actuator: | With adjustable round stainless steel rod lever, 3×125 mm diameter |
Contact Block: | 2x(1NO-1NC) snap action (B2) |
Product Number | Variant Description |
---|---|
FD 2232 | Position switch with adjustable round rod lever |
FD 2232-M2 | Position switch with adjustable round rod lever |
FP 532 | Position switch with adjustable round rod lever |
FP 532-M2 | Position switch with adjustable round rod lever |
FL 2232-M2 | Position switch with adjustable round rod lever |
FP 232 | Position switch with adjustable round rod lever |
FP 232-M2 | Position switch with adjustable round rod lever |
FD 1532 | Position switch with adjustable round rod lever |
FL 2232 | Position switch with adjustable round rod lever |
FL 532-M2 | Position switch with adjustable round rod lever |
FD 532 | Position switch with adjustable round rod lever |
FD 532-M2V9 | Position switch with adjustable round rod lever |
FD 1232 | Position switch with adjustable round rod lever |
FD 1232-M2 | Position switch with adjustable round rod lever |
FL 532 | Position switch with adjustable round rod lever |
FL 532-M2K23 | Position switch with adjustable round rod lever |
FD 532-M2T6 | Position switch with adjustable round rod lever |
FD 532-M2 | Position switch with adjustable round rod lever |
FP 1532 | Position switch with adjustable round rod lever |
FP 1232-M2 | Position switch with adjustable round rod lever |
FL 232-M2 | Position switch with adjustable round rod lever |
FP 2232-M2 | Position switch with adjustable round rod lever |
FP 2232 | Position switch with adjustable round rod lever |
FL 232 | Position switch with adjustable round rod lever |
FL 1532-M2 | Position switch with adjustable round rod lever |
FD 232 | Position switch with adjustable round rod lever |
FP 1232 | Position switch with adjustable round rod lever |
FL 1232 | Position switch with adjustable round rod lever |
FL 1232-M2 | Position switch with adjustable round rod lever |
FP 1532-M2 | Position switch with adjustable round rod lever |
FL 1532 | Position switch with adjustable round rod lever |
FD 232-M2T6 | Position switch with adjustable round rod lever |
FD 1532-M2 | Position switch with adjustable round rod lever |
