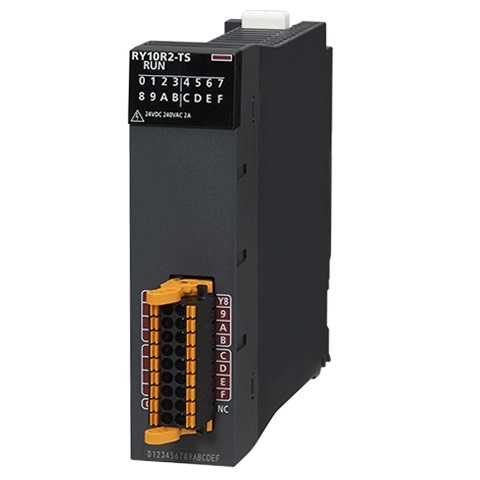

“Mitsubishi RY10R2-TS Relay Output 16 Points – Spring-Clamp Terminal Block”
Relay output, 16 points: 24 V DC/2 A, 240 V AC/2 A,
| Series: | MELSEC IQ-R SERIES |
| Type: | TRIAC OUTPUT |
| Depth (mm): | 131 |
| Weight (kg): | 0,24 |
| Width (mm): | 27,8 |
| Height (mm): | 98 (106) |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 45 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 26 |
| REACH Limit Exceeded: | YES |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| REACH Substance CAS Number: | 19438-60-9, 7439-92-1, 75980-60-8, 80-43-3, 85-42-7 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| Int. Current Consumption (A): | 0,28 |
| Occupied I/O Points On PLC: | 16 |
| Wiring: | SCREW |
| Integrated Digital Outputs: | 16 |
| Output Type: | TRIAC |
| Rated Load Voltage (VAC): | 100-240 |
