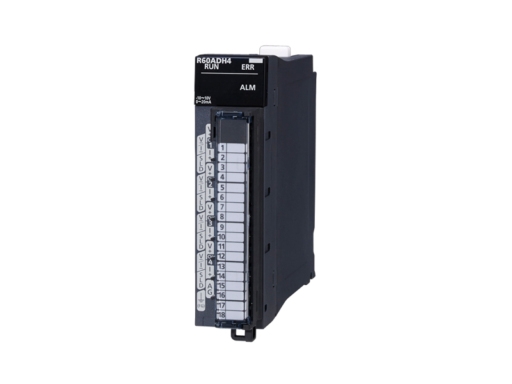

“Mitsubishi R60ADH4 – 4 Voltage/Current Channels, 1?s/CH – Product Info”
4 channels for voltage/current inputs, –10…10 V DC, –32000…32000;
| Series: | MELSEC IQ-R SERIES |
| Type: | ANALOG INPUT |
| Integrated Analogue Inputs: | 8 |
| Depth (mm): | 131 |
| Weight (kg): | 0,12 |
| Width (mm): | 27,8 |
| Height (mm): | 106 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 45 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 26 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| REACH Substance CAS Number: | 108-78-1, 7439-92-1, 80-05-7, 119313-12-1 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| Int. Current Consumption (A): | 0,22 |
| Occupied I/O Points On PLC: | 16 |
| Wiring: | SCREW |
| Input Voltage Range (V): | -10-10; 0-10; 0-5; 1-5 |
