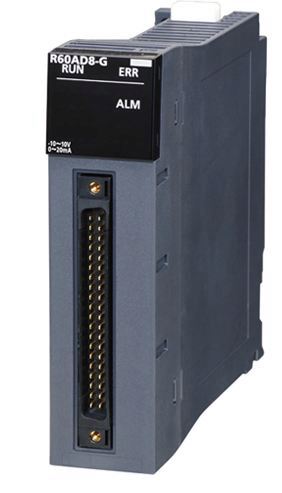

“Mitsubishi R60AD8-G – 8-Channel Isolated Voltage/Current Input Module”
8 channels for voltage/current input, channel isolated;
| Series: | MELSEC IQ-R SERIES |
| Type: | CHANNEL ISOLATED ANALOG INPUT |
| Integrated Analogue Inputs: | 16 |
| Depth (mm): | 110 |
| Weight (kg): | 0,26 |
| Width (mm): | 56 |
| Height (mm): | 98 (106) |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 45 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 25 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| REACH Substance CAS Number: | 2451-62-9, 80-05-7, 7439-92-1 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| Int. Current Consumption (A): | 0,52 |
| Occupied I/O Points On PLC: | 16 |
| Wiring: | SCREW |
| Input Voltage Range (V): | -10-10; 0-10; 0-5; 1-5 |
| Input Current Range (mA): | 0-20; 4-20 |
