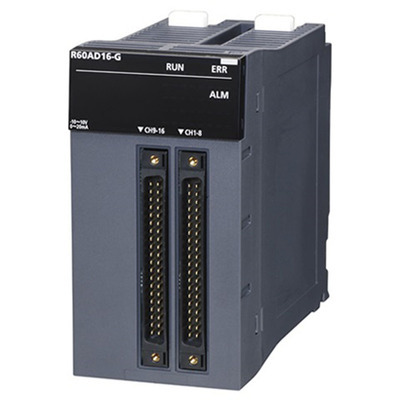

“Mitsubishi R60AD16-G | 16-Channel Isolated Voltage/Current Input Device”
$4,529.80
16 channels for voltage/current input, channel isolated;
| Series: | MELSEC IQ-R SERIES |
| Type: | TEMPERATURE INPUT |
| Integrated Analogue Inputs: | 8 |
| Depth (mm): | 110 |
| Weight (kg): | 0,19 |
| Width (mm): | 27,8 |
| Height (mm): | 106 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 45 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 4 |
| Wood (g): | 0 |
| Other paper (g): | 26 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| REACH Substance CAS Number: | 80-05-7, 7439-92-1, 2451-62-9 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| Int. Current Consumption (A): | 0,36 |
| Occupied I/O Points On PLC: | 16 |
| Input Type: | THERMOCOUPLE |
| Applicable Thermocouple Type: | E, B, J, K, N, R, S, T |
