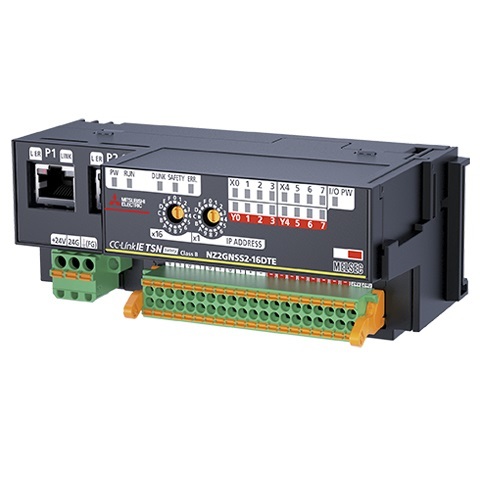

“Mitsubishi NZ2GNSS2-16DTE I/O Module 8/4 POINTS 24V DC – SEO”
I/O Combined Input: 8 points (single wire)/4 points (double wire), 24 V DC, response time 1Â…70 ms, negative common. Output: 8 points (single wire)/4 points (double wire), 24 V DC (0.5 A) source + source type, spring-clamp terminal block, 2-wire
| Series: | CC-LINK IE TSN/ANYWIREASLINK |
| Type: | GATEWAY |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 102,8 |
| Weight (kg): | 0,2 |
| Width (mm): | 43 |
| Height (mm): | 102 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Ul/cul: | COMPLIANT |
| Network Interface: | CC-LINK IE TSN/ANYWIREASLINK |
| UKCA: | COMPLIANT |
