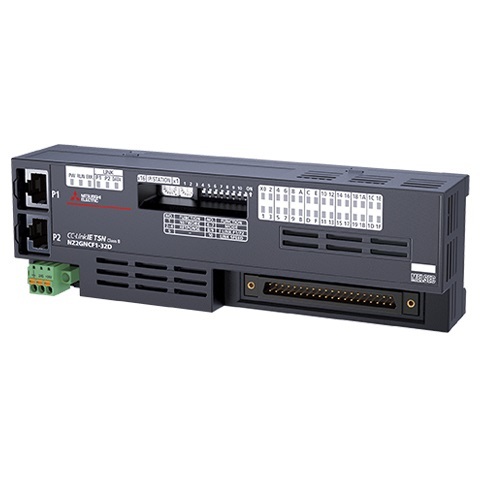

“Mitsubishi NZ2GNCF1-32D: 32 Points, 24V DC, 0-70 ms Reaction, 40-Pin Connector”
$973.20
32 points, 24 V DC, response time 0Â…70 ms
| Series: | CC-LINK IE TSN |
| Type: | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Occupied Stations: | 1 |
| Integrated Digital Outputs: | 16 |
| Output Type: | TRANSISTOR |
| Output Logic: | SINK |
| Rated Load Voltage (VDC): | 24-Dec |
| Wiring: | SPRING CLAMP |
| Int. Current Consumption (A): | 0,11 |
| Depth (mm): | 45,5 |
| Weight (kg): | 0,15 |
| Width (mm): | 147 |
| Height (mm): | 54,5 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 120 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 4 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 71868-10-5, 75980-60-8 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| UKCA: | COMPLIANT |
