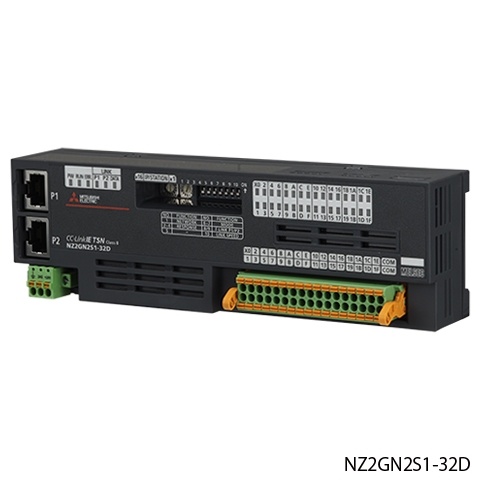

“Mitsubishi NZ2GN2S1-32D: 32 Point, 24V DC, 1-Wire Terminal Block”
32 points, 24 V DC, response time 0Â…70 ms, positive/negative common shared
| Series: | CC-LINK IE TSN |
| Type: | REMOTE DC INPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Occupied Stations: | 1 |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,11 |
| Depth (mm): | 46 |
| Weight (kg): | 0,25 |
| Width (mm): | 200 |
| Height (mm): | 54,5 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 130 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 4 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 71868-10-5, 10124-43-3 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Integrated Digital Inputs: | 32 |
| Rated Input Voltage (VDC): | 24 |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
