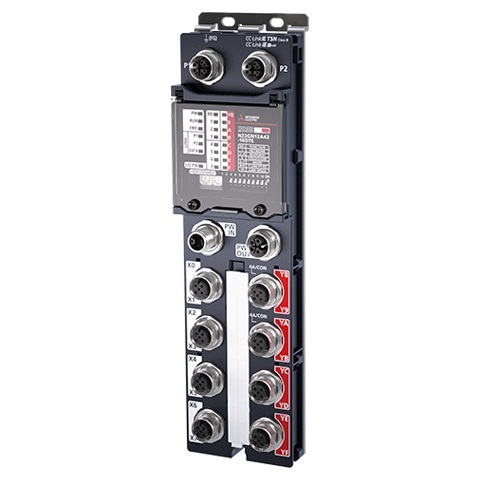

“Mitsubishi NZ2GN12A42-16DTE: 8-point, 24V DC, Waterproof Connector”
Input: 8 points, 24 V DC, response time 0Â…70 ms, negative common 2- to 4-wire
| Series: | CC-LINK IE TSN |
| Type: | SAFETY REMOTE DC INPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Occupied Stations: | 1 |
| Wiring: | SPRING CLAMP |
| Int. Current Consumption (A): | 0,16 |
| Depth (mm): | 68 |
| Weight (kg): | 0,25 |
| Width (mm): | 142 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 115 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 7439-92-1, 75980-60-8 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Integrated Digital Inputs: | 8 |
| Rated Input Voltage (VDC): | 24 |
| Ul/cul: | COMPLIANT |
